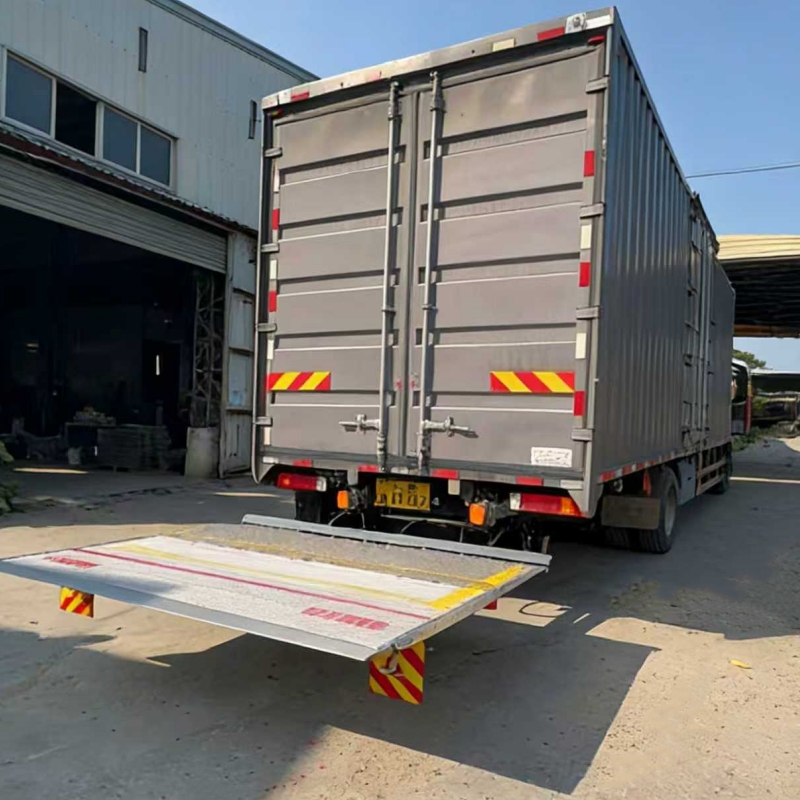

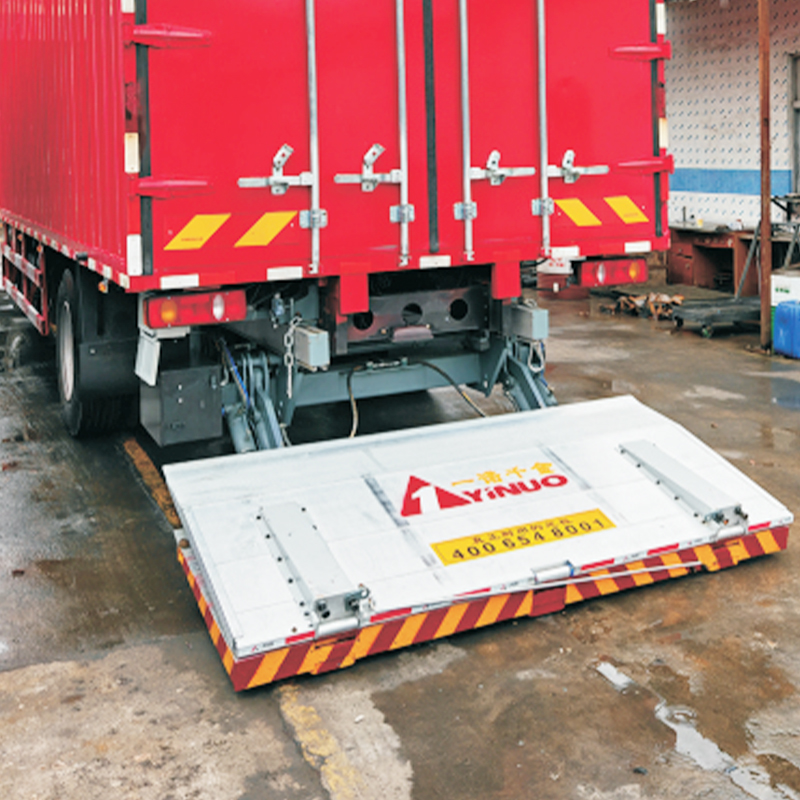

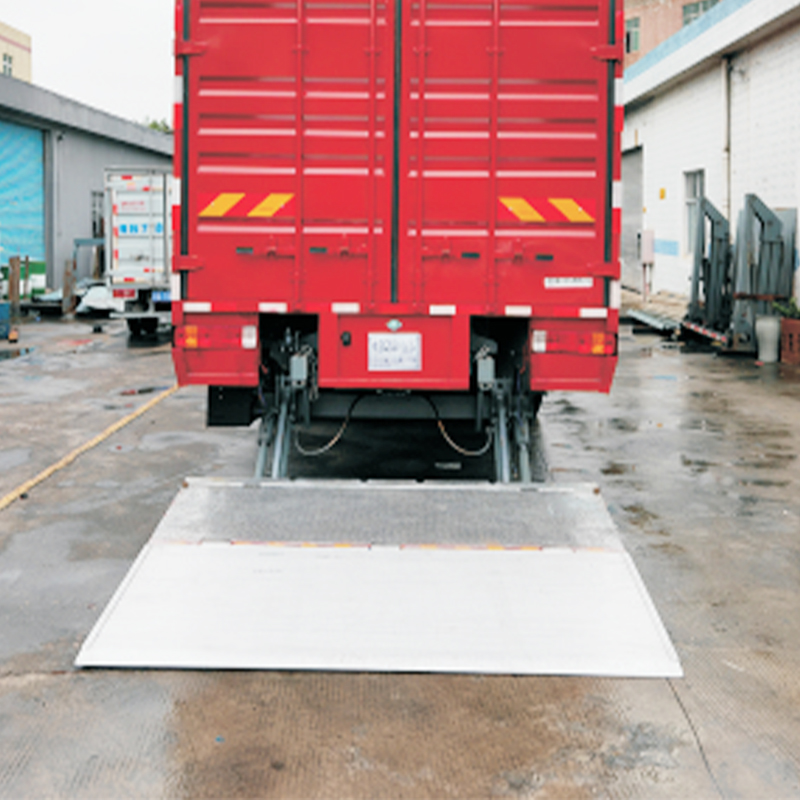

Hidden Folding Tailgate

1.5 tons, 2 tons
Applicable scenarios: Urban delivery, cold chain transportation, warehouse parking, etc. Suitable for small to medium-sized goods. Can be installed and used with box trucks, refrigerated trucks, light and medium-duty trucks. Particularly suitable for cold chain transportation requiring sealed cargo compartments and seamless warehouse connections.
Customization available.

Contact

Features
Technical Indicators
Overall Dimension

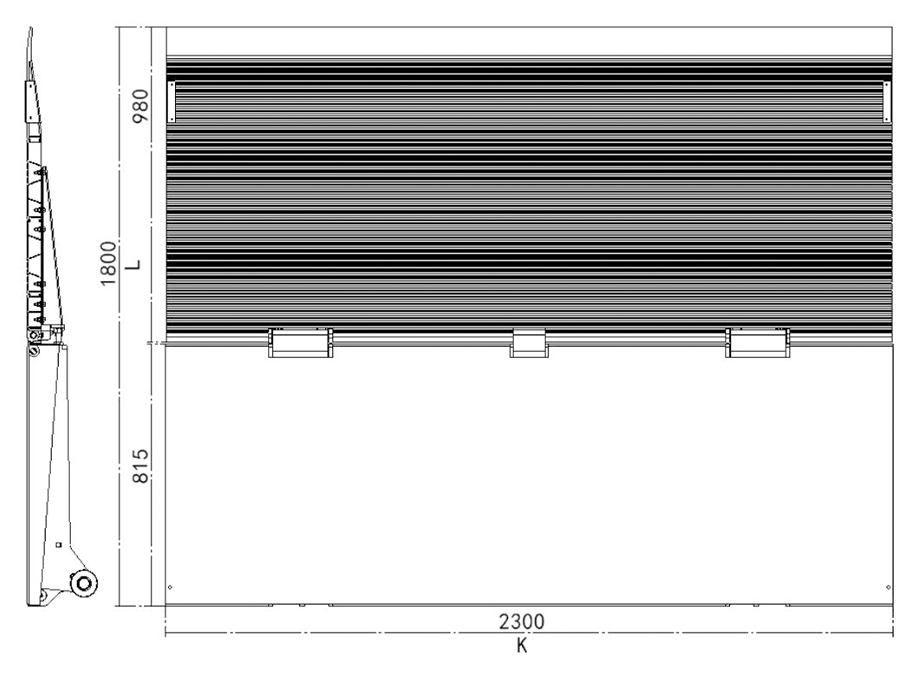

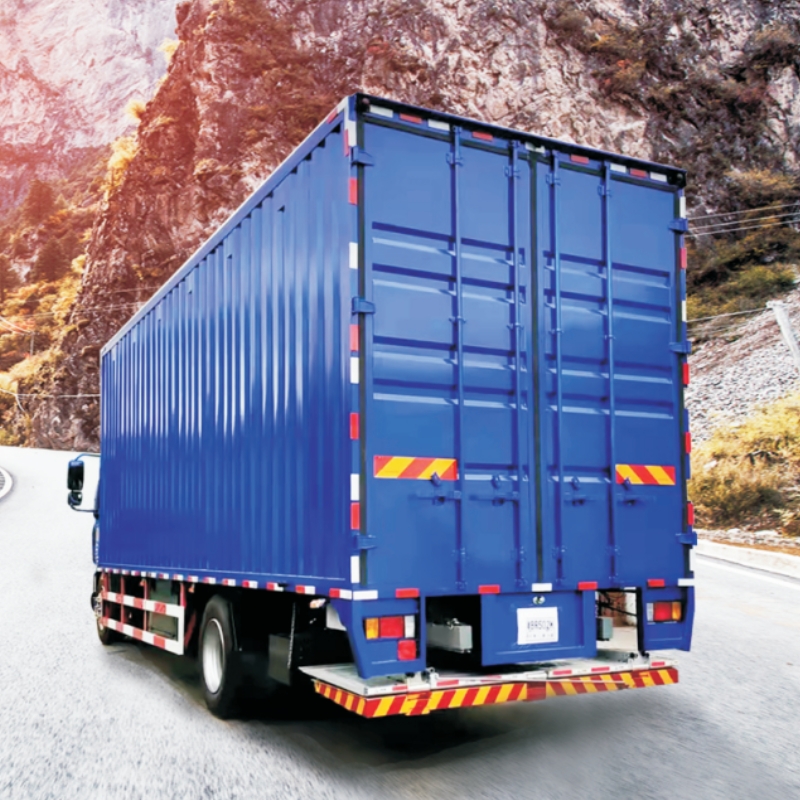

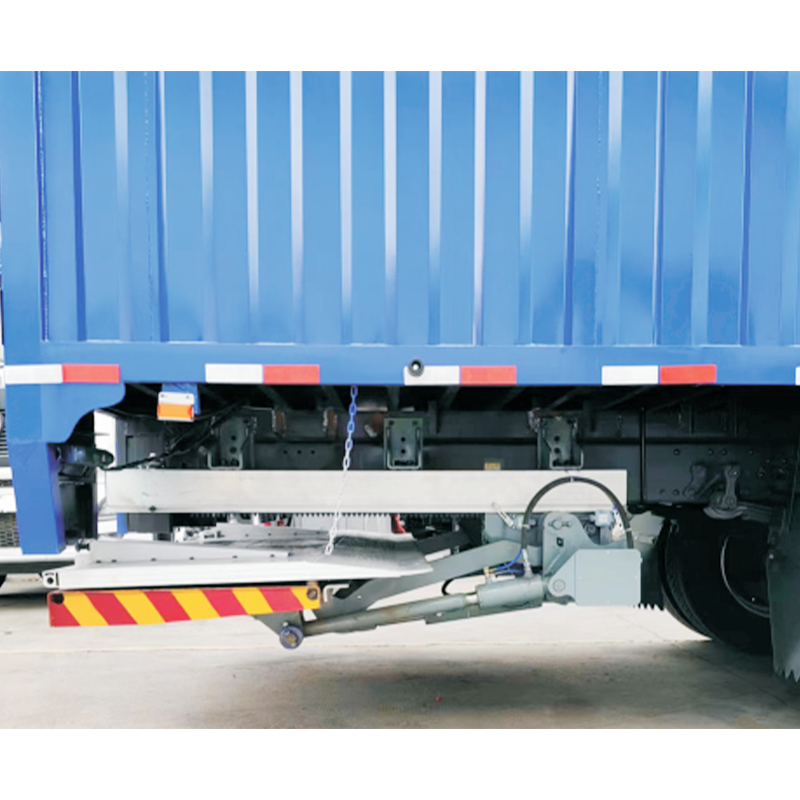

Key Features: Utilizes aluminum alloy rails and a hydraulic motor-driven gear and rack sliding mechanism, allowing the folded tailgate to be concealed beneath the vehicle with minimal modifications. Compatible with various vehicle types, including box trucks and refrigerated trucks, it meets the cargo transportation needs of both scenarios where a tailgate is required and those where it is not. Key Advantages: Transports goods regardless of whether a tailgate is needed, enhancing vehicle versatility; does not occupy vehicle space, does not affect door sealing or tight docking with the platform, reducing cold air loss during cold chain transportation; unfolding and folding can be completed in minutes, enabling highly efficient and frequent loading and unloading; the tailgate is bolted to the vehicle, allowing for separation of the tailgate from the vehicle in just ten minutes.
Slide-down folding tailgate
PS20/L
Platform Terminology
Component Description

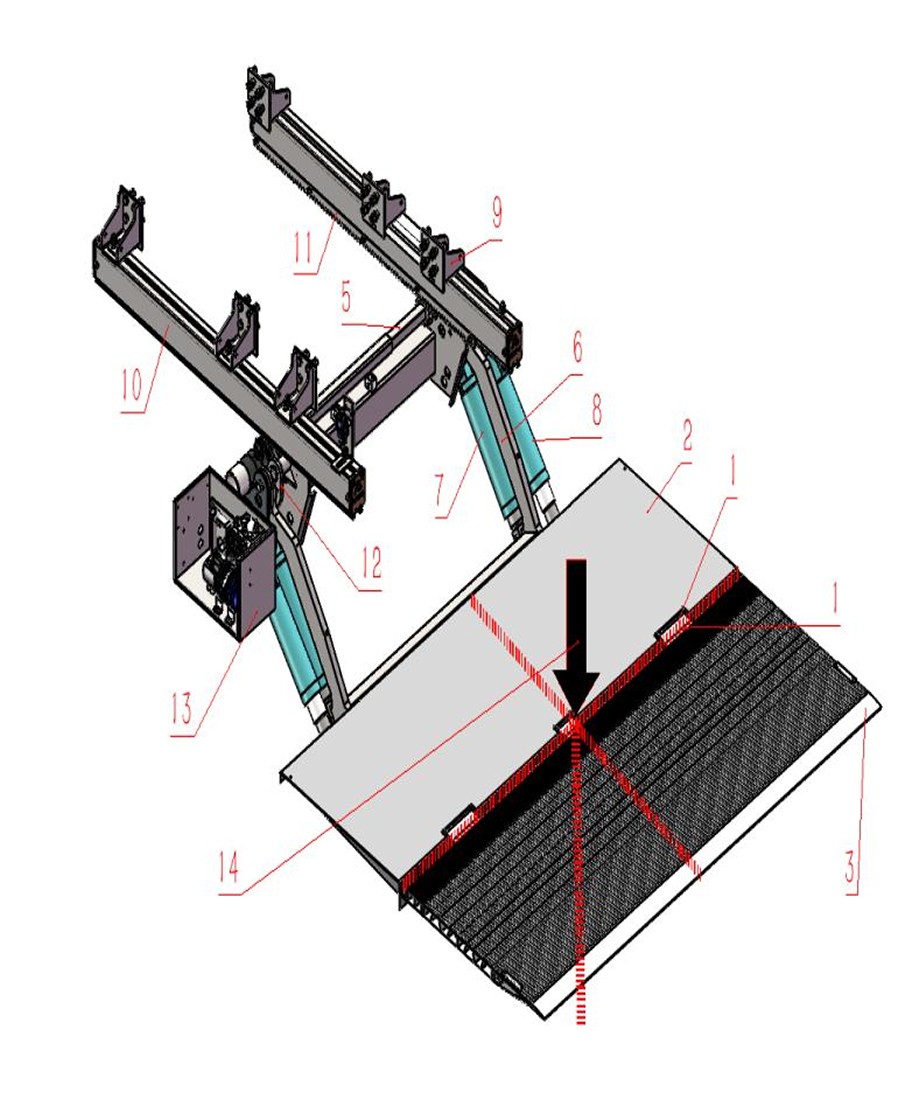

For the parts corresponding to the numbers in this table, please refer to the next page. [ picture 6.0 ]
For the parts corresponding to the numbers in this table, please see the figures on the next page.
1
Workbench assembly:a combination of the main part of the tabletop and the hinge part.
2
Main part of the workbench: the internal part of the folding platform. It is made of lightweight steel or aluminum and has a permanently non-slip surface.
3
The folding section of the worktable bears the load during loading/unloading and lifting/lowering. It consists of a main board and a hinge.
4
Adjusting bolt: Bolts for adjusting the angles of the main and tilting parts of the worktable.
5
Transmission assembly: The assembly responsible for rotating the gear disc.
6
Lifting arm:Support between parallel lifting arms.
7
Lifting cylinder - Hydraulic cylinders used to raise/lower the lifting arm, platform, and their load.
8
tilting cylinder - Hydraulic cylinders used to control the platform's pitch.
9
Mounting flange: Used to mount the slide rail to the vehicle chassis.
10
Sliding guide rail: A steel channel installed at the bottom of the vehicle body, allowing the worktable to slide.
11
Gears and racks:They activate the sliding function of the platform.
12
Self-tilting plate: Allows the platform to tilt downwards and become flush with the loading surface.
13
Hydraulic unit: includes an electric motor that drives the pump, oil tank, and control valves.
14
Maximum load center point: The point at which the platform's maximum rated load capacity is effective. Beyond this point, the maximum safe working load will decrease according to the applicable load chart.
picture 6.0

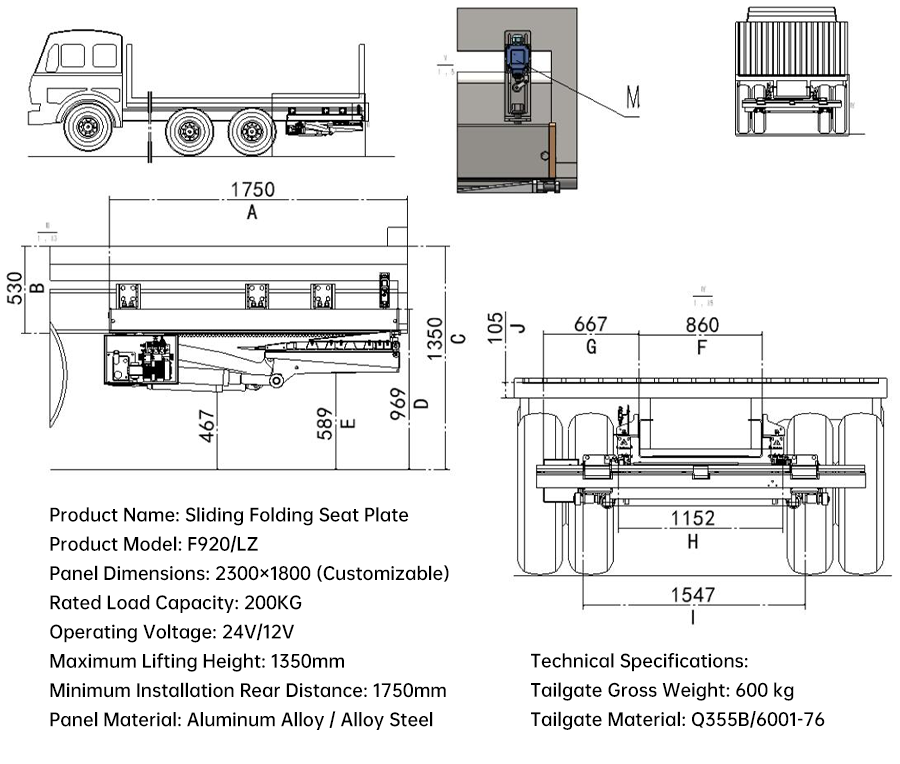

Installation parameter terminology
For the parts corresponding to the numbers in this table, please refer to the next page .
A
Minimum installation space required at the end of the frame
B
Maximum height from the bottom of the chassis to the top of the vehicle floor
C
Actual height from ground level to vehicle floor / maximum lifting height
D
Installation height from ground to the top plane of the base beam
E
The lowest point of the workbench is at the ground (maximum).
F
Vehicle chassis beam outer width (maximum) 910 , the smallest 800 )
G
Minimum pre-assembly position outside the vehicle chassis beam [ to ] [ External width of vehicle body ]
H
Track installation width [= [ Outer width ]
I
Available mounting space for truck taillights on the outside of the tilted hydraulic cylinder
J
Thickness of the rear crossbeam or foot pedal of the vehicle floor = From the vehicle's floor to the thickness of the chassis frame's lower plane
K
Workbench width
L
Workbench Deployment Depth
M
Lift limit switch
N
Retract limiter
Q
Extension limiter

Get the latest price? We will respond as soon as possible (within 12 hours)

1	Workbench assembly:a combination of the main part of the tabletop and the hinge part.
2	Main part of the workbench: the internal part of the folding platform. It is made of lightweight steel or aluminum and has a permanently non-slip surface.
3	The folding section of the worktable bears the load during loading/unloading and lifting/lowering. It consists of a main board and a hinge.
4	Adjusting bolt: Bolts for adjusting the angles of the main and tilting parts of the worktable.
5	Transmission assembly: The assembly responsible for rotating the gear disc.
6	Lifting arm:Support between parallel lifting arms.
7	Lifting cylinder - Hydraulic cylinders used to raise/lower the lifting arm, platform, and their load.
8	tilting cylinder - Hydraulic cylinders used to control the platform's pitch.
9	Mounting flange: Used to mount the slide rail to the vehicle chassis.
10	Sliding guide rail: A steel channel installed at the bottom of the vehicle body, allowing the worktable to slide.
11	Gears and racks:They activate the sliding function of the platform.
12	Self-tilting plate: Allows the platform to tilt downwards and become flush with the loading surface.
13	Hydraulic unit: includes an electric motor that drives the pump, oil tank, and control valves.
14	Maximum load center point: The point at which the platform's maximum rated load capacity is effective. Beyond this point, the maximum safe working load will decrease according to the applicable load chart.

A	Minimum installation space required at the end of the frame
B	Maximum height from the bottom of the chassis to the top of the vehicle floor
C	Actual height from ground level to vehicle floor / maximum lifting height
D	Installation height from ground to the top plane of the base beam
E	The lowest point of the workbench is at the ground (maximum).
F	Vehicle chassis beam outer width (maximum) 910 , the smallest 800 )
G	Minimum pre-assembly position outside the vehicle chassis beam [ to ] [ External width of vehicle body ]
H	Track installation width [= [ Outer width ]
I	Available mounting space for truck taillights on the outside of the tilted hydraulic cylinder
J	Thickness of the rear crossbeam or foot pedal of the vehicle floor = From the vehicle's floor to the thickness of the chassis frame's lower plane
K	Workbench width
L	Workbench Deployment Depth
M	Lift limit switch
N	Retract limiter
Q	Extension limiter
